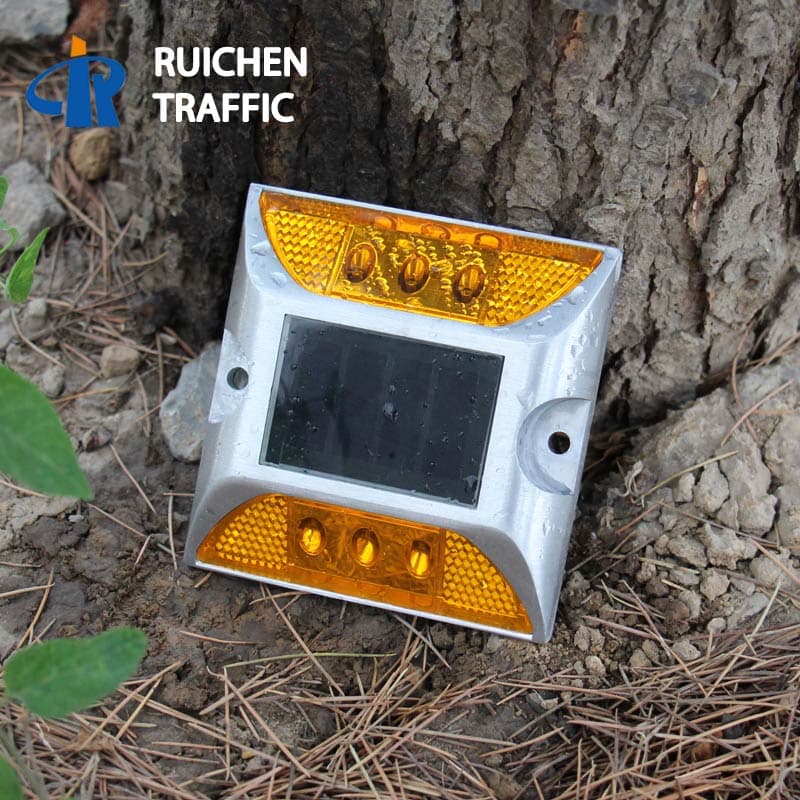

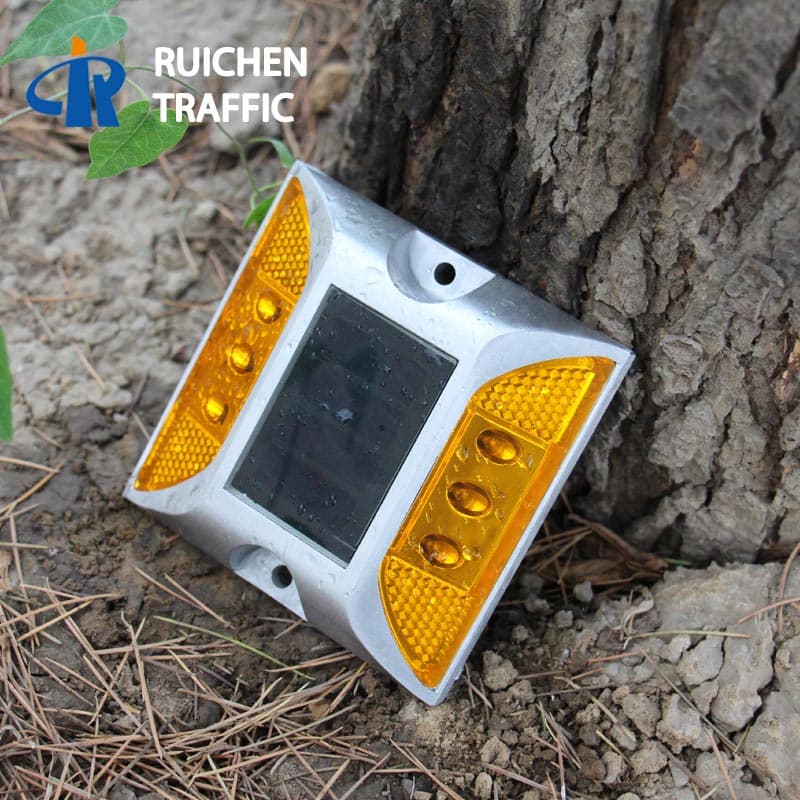

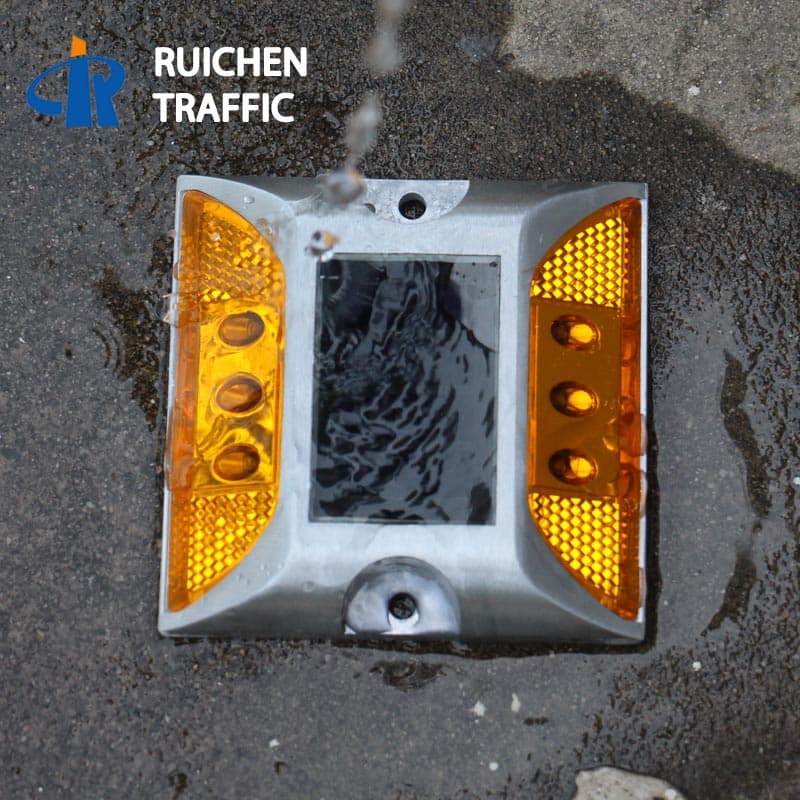

Aluminum Solar Reflective Pavement Markers D1

Load Bearing: 20 Tons
Warranty: 12 Months
Body material: Heavy duty casting aluminum
Power supply:  Solar panel(monocrystalline 2.5V/0.2W)
Visual distance: > 800m
Working Mode: Flashing or Constant
Waterproof: IP68

Product Introduction

Aluminum Solar Reflective Pavement Markers Features:

•Up to 800 meters of visibility.

•Reliable all night, all-year-round performance.

•Totally sustainable harnessing free solar energy.

•Used where street lighting is either unavailable, solar pavement marker not cost-effective, or environmentally impossible.

•Cost-effective, LED solar pavement markers are easy to install and require absolutely no wires or maintenance.

•Aluminum solar pavement marker self-contained surface mounted.

•Aluminum solar pavement marker with reflectors OEM/ODM

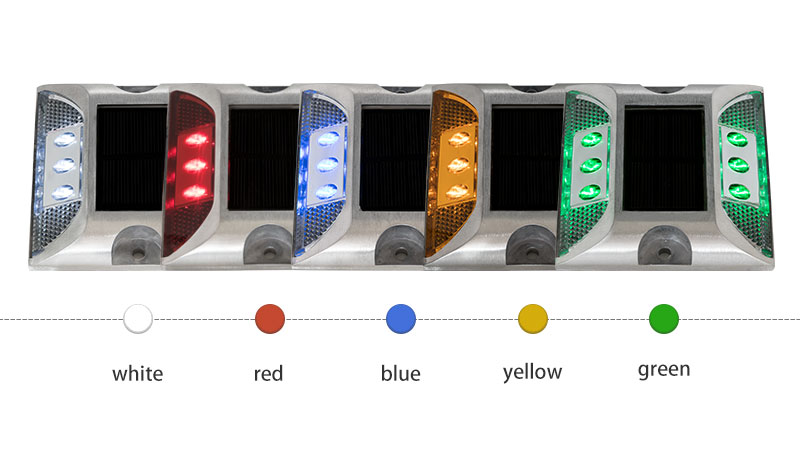

Raised Aluminum LED Solar Stud Light color
Five colors for choice: White, Amber, Red, Blue, Green


Aluminum solar pavement marker Parameters:


    Material:     Heavy-duty casting aluminium
    Power supply:     Solar panel(monocrystalline 2.5V/0.2W)
    Battery:     NI-MH 1.2V/800MAH or lithium battery
    Working model:     Blinking or Constant
Charging in the daytime and working automatically at night
    LED:    Diameter 5mm;2pcs or 3pcs per side
    LED colors:     Yellow, White, Red, Green, Blue
    Life span:    3 years
    Resistance:     >20T(static)
    Size:     L104*W104*H20mm  (L4.09″*W4.09″*H0.78″)
    Visual distance:     >800M
    Water proof:     IP68
    Carton Size:     60pcs/ctn(2pcs/box);21kgs; Carton size:58.5*24.5*18.5cm
[60pcs/ctn(2pcs/box);46.30bs; Carton size:23.03″*9.65″*7.28″]

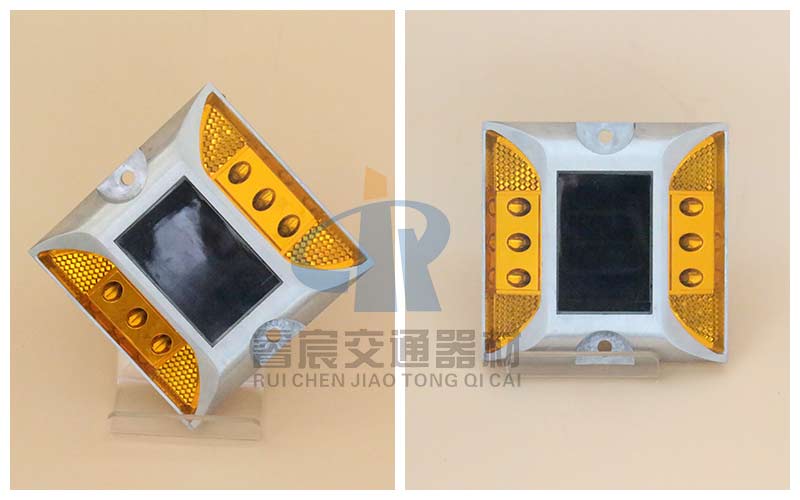

Aluminum Solar Reflective Pavement Markers D1
Aluminum Solar Reflective Pavement Markers D1

Application of Aluminum solar pavement markert D1:

♥Schools and hospitals


♥Deck and Dock

♥Walking paths


♥Parks and campuses



Installation Method Of  Aluminum solar pavement marker D1:

1.Determine the installation location and distance, clean the road surface, and ensure that the solar pavement markers are installed on a flat road surface.
2.Clean the bottom of the solar pavement marker and apply the epoxy glue evenly to the back of the studs.
3. Press the side with the glue on the road, fix the position, wait for the glue to dry.
4. Check within 2 hours of installation to ensure that all solar pavement markers are not installed incorrectly and are not bent or deformed due to compression.
5. Remove the installation isolation facility within 6-8 hours after the installation of the Aluminum solar pavement marker.
