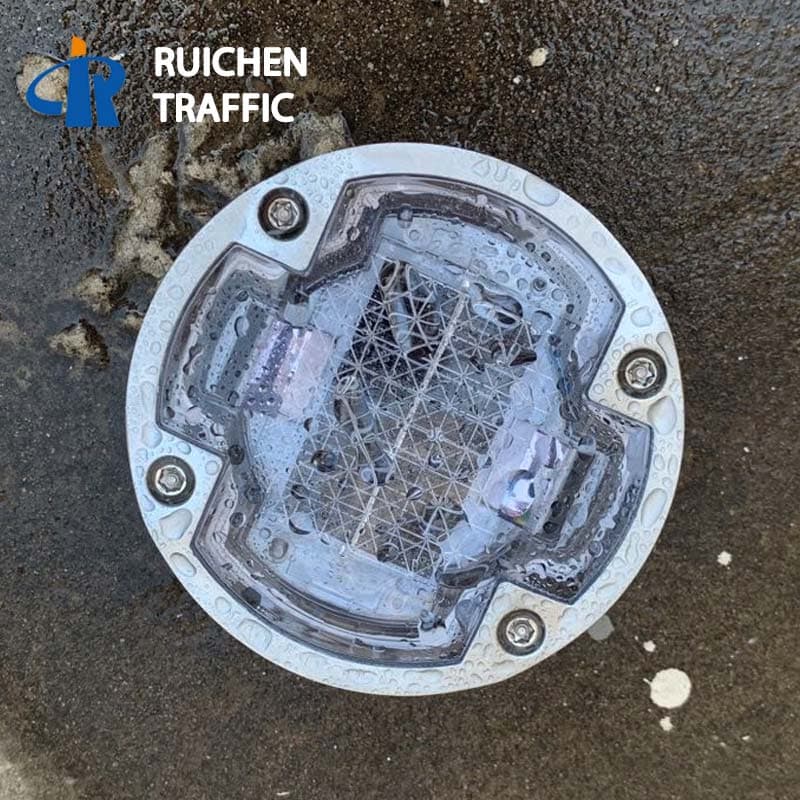

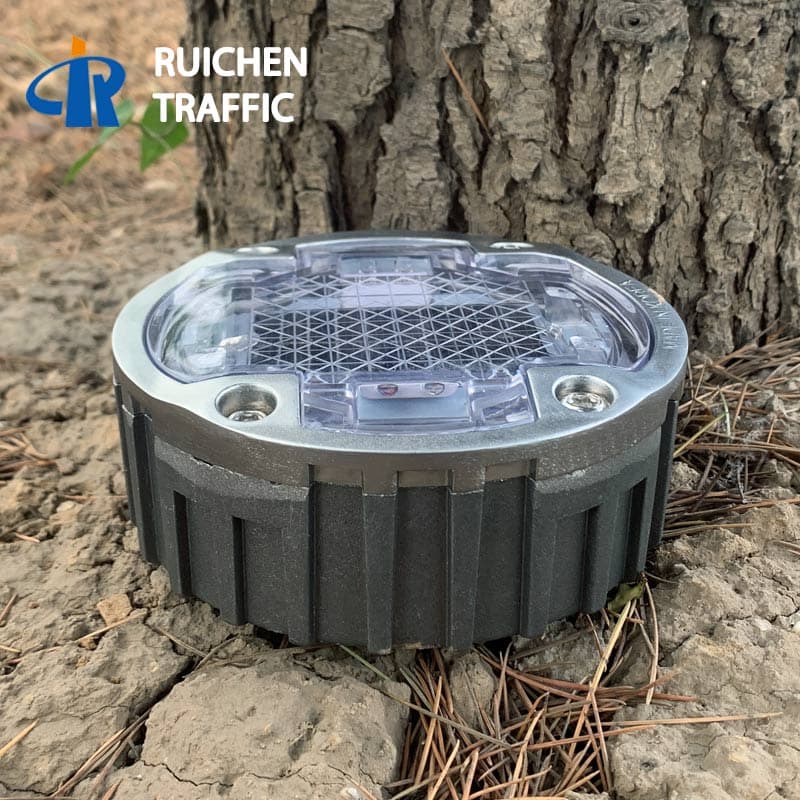

Embedded Solar Pavement Levelled Marker C3

Load Bearing: >30T(static)
Warranty: 12 Months
Body material: Heavy-duty casting aluminum
Battery: Lithium battery 1000mA
Visual distance: > 800m
Working Mode: Flashing or Constant
Waterproof: IP68

Product Introduction

Embedded Solar Pavement Levelled Marker Features:

•Up to 800 meters of visibility.

•Reliable all night, all-year-round performance.

•Totally sustainable harnessing free solar energy.

•Used where street lighting is either unavailable, solar pavement levelled marker cost-effective, or environmentally impossible.

•Cost-effective, LED solar pavement levelled markers are easy to install and require absolutely no wires or maintenance.

•Solar pavement levelled marker self-contained surface mounted.

•Solar pavement levelled marker accept OEM/ODM

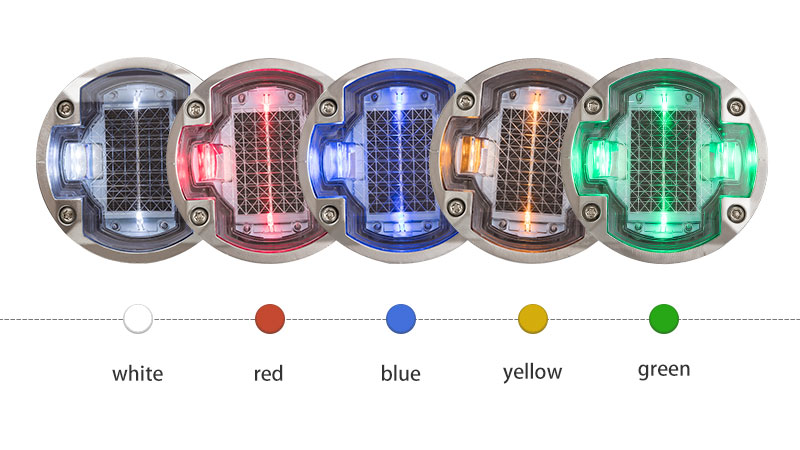

Aluminum Solar Studs Light Pavement Marker color
Five colors for choice: White, Amber, Red, Blue, Green


Solar pavement levelled marker parameters:


    Material:     Aluminium+ PC
    Power supply:     Solar panel(monocrystalline 2.5V/0.3W)
    Battery:     Lithium battery 1000mA
    Working model:     Blinking or Constant
Charging in the daytime and working automatically at night
    Life span:     5 years for lithium battery;
    LED colors:     Yellow, White, Red, Green, Blue
    Resistance:     >30T(static)
    Size:     φ123*45mm  (φ4.84″*1.77″)
    Visual distance:     >800M
    Water proof:     IP68
    Carton Size:     1pcs/box; 30pcs/ctn; Weight: 30kgs; Carton size: 67.5*28*20cm
(1pcs/box; 30pcs/ctn; Weight: 66.14bs; Carton size: 26.57″*11.02″*7.87″)

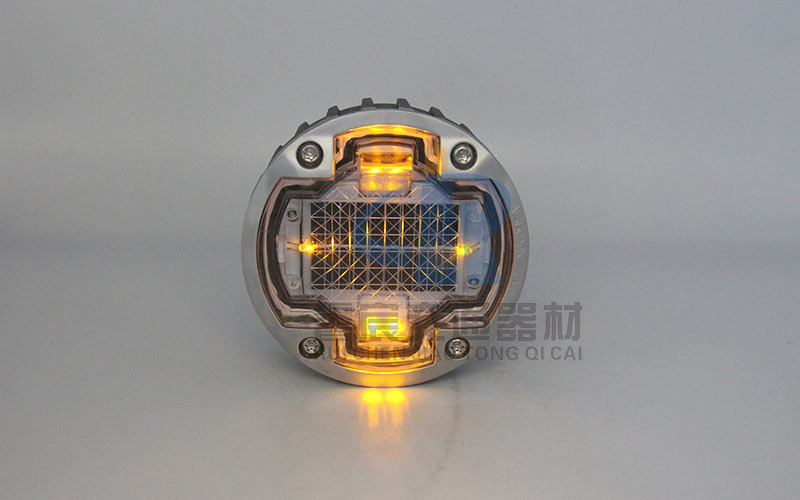

Embedded Solar Pavement Levelled Marker C3
Embedded Solar Pavement Levelled Marker C3

Application of Aluminum solar pavement levelled marker C3:

♥Schools and hospitals


♥High traffic areas

♥Walking paths

♥Transit stations

♥Parks and campuses

♥Urban Road


How to install solar pavement levelled marker C3:


1. Carefully mark the distance between the placement of solar pavement levelled marker lights. To prevent an adverse effect on the ground, use a proper tool such as Core Drill. Drill 125mm and depth will be 45mm.

2. Remove all debris from the installation hole.

3. Pour epoxy into the holes per the manufacturer’s instruction.

4. Verity that the installation hole is straight. Verify that the installation hole is large enough to allow the epoxy to surround the solar pavement marker shaft.

5. Set the lighting surface of the solar pavement marker light to the desired viewing angle. Verify the epoxy is evenly adhering to the installation hole and solar pavement marker shaft.

6. After curing the LED solar pavement marker for 6-8 hours, remove the installation of the isolation facility.
