Load Bearing: >20T(static)
Warranty: 12 Months
Body material: GB Cast Aluminium alloy
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Shank: With shank or Without shank
Aluminum Solar Pavement Marker Light Features:
•High shock resistance, energy-saving, environment friendly.
•Automatically starts to work when night falls or with the onset of inclement weather.
•These aluminum alloy LED Solar Pavement Marker Lights are naturally charged by the sun.
•The Solar Pavement Marker Lights come on automatically as soon as it starts getting dark every night.
• Cost-effective, Solar Pavement Marker Light is easy to install and require absolutely no wires or maintenance.
•Dramatically enhances the look of your garden/yard/driveway.
•Specifically designed with road safety in mind and can help to prevent serious accidents and emit rather than reflect light.
•Solar Pavement Marker Light accept OEM/ODM
LED Solar studs Light Parameters:
| Material: | Heavy-duty casting aluminum |
| Power supply: |
Solar panel(monocrystalline 2.5V/0.2W) |
| Battery: | NI-MH 1.2V/800MAH |
| Working model: |
Blinking or Constant Charging in daytime and working automatically at night |
| LED: | Diameter 5mm;2pcs or 3pcs per side |

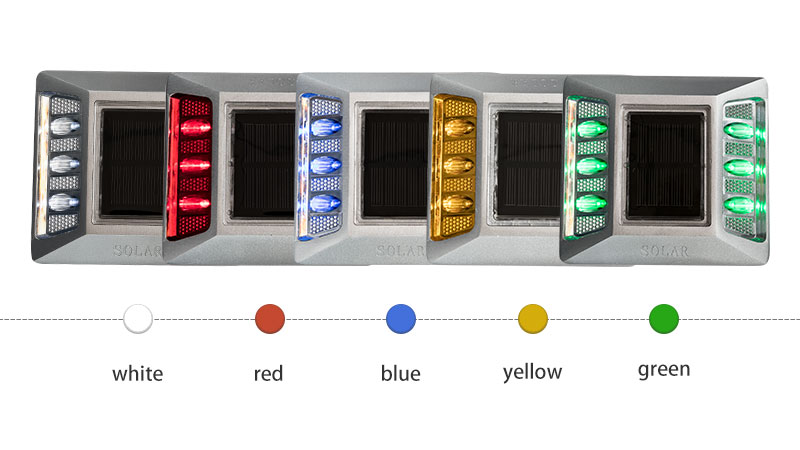

| LED colors: | Yellow, White, Red, Green, Blue |
| Life span: | 3 years |
| Resistance: | >20T(static) |
| Size: | L123*W133*H22mm+55mm (L4.84″*W5.24″*H0.87″+2.17″) |
| Visual distance: |
>800M |
| Water proof: | IP68 |
| Carton Size: | 1pcs/box; 45pcs/ctn; Weight: 31kgs; Carton size: 66.5*44*28cm (1pcs/box; 45pcs/ctn; Weight: 68.34bs; Carton size: 26.18″*17.32″*11.02″) |
Application of Solar Pavement Marker Light D2:
♥Schools and hospitals
♥Highways
♥High traffic areas
♥Walking paths
♥Transit stations
♥Parks and campuses
♥Other Public places
How to install Aluminum Solar Pavement Marker Light D2:
1. Carefully mark the distance between the placement of the Solar Pavement Marker Light. To prevent adverse effects on the ground, use appropriate tools, such as core drills, which have a diameter of 35mm and a depth of 55mm.
2. Remove all debris from the mounting hole.
3. Pour epoxy resin into the hole according to the manufacturer’s instructions.
Make sure that the mounting holes are straight. Make sure that the mounting hole is large enough to allow epoxy resin to surround the Solar Pavement Marker Light.
4. Adjust the lighting surface of the Solar Pavement Marker Light to the desired viewing angle.
5. Make sure that the epoxy resin adheres evenly to the mounting hole and the Solar Pavement Marker Light. Make sure that the bottom of the solar studs is securely mounted on the mounting surface to ensure that zero “surface floating” occurs. (Space between the installation sign and the bottom of the Solar Pavement Marker Light).
6. After curing the LED Solar Pavement Marker Light for 6-8 hours, remove the installation of the isolation facility.
